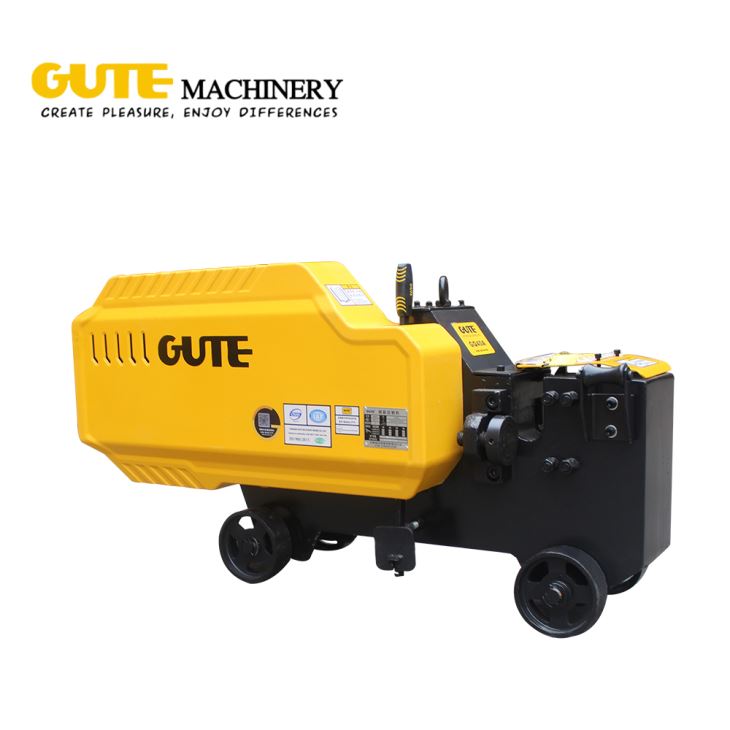

Gute Steel Bar Cutter GQ 40
GQ40 adopts SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment and 12mm thick external case to ensure reliable performances also under heavy loads and long working life…
Description
Product Details of Gute Steel Bar Cutter GQ 40
- GQ40 adopts SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment and 12mm thick external case to ensure reliable performances also under heavy loads and long working life.
- Thick and durable BLADES (4 edges) to ensure accurate cutting with all kinds of steel bar.
- CE Certificated dust proof MOTOR with aluminium shell.
- CE Certification (2006/42/EC – 2006/95/EC).
MOTOR TYPE
GQ40
- MOTOR TYPE: Y100L-2
* Motors has 1 year warranty.
* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)
FREQUENCY OPTIONS: 50Hz / 60Hz
| STEEL BAR CUTTER GQ40 | ||
| CUTTING CAPACITY | 6-36 mm (ob ≤450N/mm2) | 6-34 mm (ob ≤650N/mm2) |
| FLAT STEEL | 32 x 32 mm | |
| ANGLE STEEL | 50 x 50 mm | |
| TYPE OF MOTOR | Y100L-2 | |
| MOTOR POWER | 3 KW-2P | |
| MOTOR SAFETY | IP44, IP54, IP55 | |
| MOTOR ROTATION SPEED | 2860 R/min | |
| CUTTING SPEED | 32 T/min | |
| WEIGHT | 380 Kg. | |
| EXTERNAL DIMENSIONS | 1280 X 460X 700mm | |
| CERTIFICATION | 2006/42/EC – 2006/95/EC | |
